IE VW & Audi 2.0T TSI / TFSI EA888 Gen 1/2 Performance ECU Tune - STAGE 1

SKU: IESOVT11
AVAILABILITY: AVAILABLE

$750.00 $no

WHICH TUNE IS RIGHT FOR YOU?

STAGE 1

257 horsepower on stock hardware

Unleash hidden power in 30 minutes or less

No hardware upgrades required

Supports 91 or 93 octanes

Rev limit raised to 7000 RPM

Road speed limiters removed

Easy upgrade to Stage 2 or K04 (only pay the difference)

All safety protocols remain for reliable engine life

Engineered for all climates and elevations

Compatible with IE Cold Air Intake

Compatible with IE FDS Intercooler

Compatible with IE DSG Tune

Compatible with IE Intake Manifold Upgrade

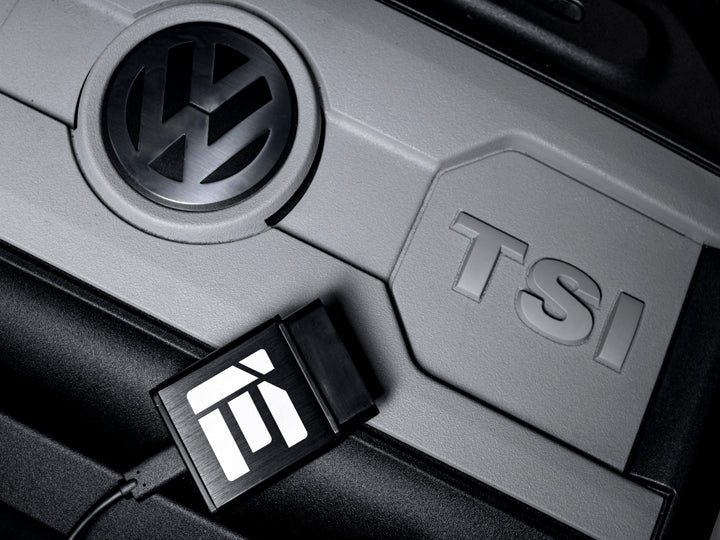

Requires IE POWERlink Flash Tool

Requires Windows 7+ powered device

All available tune stages include various octanes at no extra cost.
Using the IE POWERlink cable you can switch between octanes as needed such as high octane files for race day and regular pump octane on your commute.

IE tunes are calibrated to perform with IE brand hardware, performance results may differ when installing alternative brand parts.

CONSUMER NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.

OPTIONAL TUNE FEATURES

Exhaust Crackle

Give your TSI turbocharged engine an aggressive sporty sound. This fun feature is guaranteed to put a smile on your face when you rev, decelerate, or let off the throttle for gear changes. This exhaust crackle is completely safe and entirely addicting. Optional feature included with stage 2 and K04 tunes.

Stage 1 Manifold

This free option is included with a Stage 1 Tune purchase and is for owners who have installed an IE Performance Intake Manifold (Sold Separately). IE Stage 1 Intake Manifold software fine-tunes the ECU calibration to match the manifold plenum and runner flow characteristics along with special tuning for the removed runner flaps. Even though tuning now matches higher flow characteristics of the intake manifold, performance numbers are still limited by the factory downpipe. Because of this, Stage 1 IM combination is only recommended for users who are planning on Stage 2 IM in the future, are trying to get rid of constantly failing runner flaps or cracking plastic manifolds, and building for improved engine bay looks.

MORE POWER FOR YOUR 2.0T TSI

IE VW/AUDI DSG (DQ250) Transmission Tune | Fits VW MK6 GTI, Jetta, GLI, & Audi 8J TTS

IE 2.0T TSI Cold Air Intake | Fits VW MK5, MK6 GTI, Jetta, CC & Audi 8P A3

IE MK5 & MK6 2.0T 3" Catted Downpipe

IE K04 Turbo Kit MK6 2.0T TSI

VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	ENGINEGTIPassat2008-2013
VW	GTI	210-2014 (MK6)	2.0T TSI EA888 Gen 1/2
VW	GTI*	2009 Only (MK5)	2.0T TSI EA888 Gen 1/2
VW	Jetta**	2011-early 2013 (MK6)	2.0T TSI EA888 Gen 1/2
VW	GLI**	2011 - early 2013 (MK6)	2.0T TSI EA888 Gen 1/2
VW	CC	2009-2017 (3C)	2.0T TSI EA888 Gen 1/2
VW	Passat	2006-2010 (B6)	2.0T TSI EA888 Gen 1/2
VW	Tiguan	2009-2017 (5N)	2.0T TSI EA888 Gen 1/2
AUDI	A3*	2008-2013 (8P)	2.0T TSI EA888 Gen 1/2
AUDI	Q3	2015-2018 (8U)	2.0T TSI EA888 Gen 1/2

*This ECU calibration is for second generation 2.0T TSI (timing chain driven) EA888 Gen1 & Gen2 direct injection engines. Many VW & Audi models are equipped with early year 2.0T FSI (timing belt driven) EA113 engine and is a separate tune. Not sure? Don't worry, your new IE flash tool will automatically detect your engine and apply the correct tune for your engine.

**This ECU calibration is for 2.0T TSI EA888 Gen 1 & 2 engines only. Many Jetta and GLI models are equipped with a new engine variation (EA888 Gen 3) after 2013.5 and later. This tune does NOT support Gen 3 model engine ECUs. Please verify if your engine is an EA888 Gen 1/2 2.0T TSI or EA888 Gen 3 2.0T TSI tune before ordering.

IMPORTANT NOTES

REST OF WORLD (ROW) SUPPORT
IE tunes are designed and written on North American (NA) vehicles. Although IE does offer ROW purchases of software files, some ECUs available only in certain countries or markets may not be supported in our current file library. If you have access to read your ECU code, please contact us to verify compatibility before purchase.

INCREASED RPM
IE 2.0T TSI Tunes continue to make power beyond the factory rev limiter, to take advantage of the larger power band, the rev limits have been raised. All tunes include a new RPM range of 7000RPM. On DSG equipped cars, our DSG Tune is required to unlock these higher RPM ranges. DSG Calibration will shift slightly before these rev limiters.

POWER GAINS

Stage 1 93 AKI / 98 RON Octane

3000400050006000050100150200250300ENGINE RPMHORSEPOWER & FT-LB TORQUE (CRANK)

RPM	Stock - Torque	Stock - Horsepower	Stage 1 93 AKI / 98 RON Octane - Torque	Stage 1 93 AKI / 98 RON Octane - Horsepower
2,500	244	115	270	128
2,600	244	121	271	135
2,700	244	125	272	140
2,800	246	130	273	147
2,900	245	137	277	157
3,000	242	140	281	165
3,100	242	144	284	172
3,200	242	149	288	180
3,300	244	155	290	187
3,400	244	158	291	190
3,500	245	162	295	199
3,600	247	169	303	209
3,700	247	174	309	218
3,800	249	180	313	227
3,900	248	184	315	235
4,000	249	189	314	240
4,100	251	196	314	246
4,200	254	203	312	250
4,300	253	207	310	255
4,400	251	211	306	257
4,500	250	214	297	255
4,600	247	216	291	256
4,700	242	216	284	255
4,800	243	222	278	254
4,900	243	226	273	256
5,000	237	226	265	253
5,100	235	227	261	254
5,200	231	228	255	253
5,300	225	227	248	250
5,400	221	227	243	249
5,500	217	228	237	248
5,600	215	229	233	248
5,700	209	226	226	245
5,800	204	225	220	242
5,900	198	222	214	239
6,000	193	221	207	236
6,100	187	217	200	232
6,200	182	215	194	228
6,300	176	211	188	225
6,400	170	207	182	221
6,500	165	204	178	218

IE HORSEPOWER
257 BHP

IE TORQUE
315 BTQ

STOCK HORSEPOWER
229 BHP

STOCK TORQUE
254 BTQ

010203040506070ENGINE RPMGAIN OVER STOCK

RPM	Torque	Horsepower
2,500	26	13
2,600	27	14
2,700	28	15
2,800	27	17
2,900	32	20
3,000	39	25
3,100	42	28
3,200	46	31
3,300	46	32
3,400	47	32
3,500	50	37
3,600	56	40
3,700	62	44
3,800	64	47
3,900	67	51
4,000	65	51
4,100	63	50
4,200	58	47
4,300	57	48
4,400	55	46
4,500	47	41
4,600	44	40
4,700	42	39
4,800	35	32
4,900	30	30
5,000	28	27
5,100	26	27
5,200	24	25
5,300	23	23
5,400	22	22
5,500	20	20
5,600	18	19
5,700	17	19
5,800	16	17
5,900	16	17
6,000	14	15
6,100	13	15
6,200	12	13
6,300	12	14
6,400	12	14
6,500	13	14

IE HORSEPOWER
51 BHP

<span "="">IE TORQUE
67 BTQ

IE VW & Audi 2.0T TSI / TFSI EA888 Gen 1/2 Performance ECU Tune | Fits VW MK6 GTI, Jetta, GLI, B6 Passat, 3C CC, 5N Tiguan, Audi 8P A3 & 8U Q3 - STAGE 1
